Distributed Chat Application

View my code on GitHub

Techstack:
C++, Apache Kafka, Apache Cassandra, Docker, Javascript, CSS

Project Summary

This is a high-performance, full-stack distributed chat application built for real-time messaging. It features user authentication and message persistence using Apache Cassandra, a distributed wide-column store. The application is horizontally scalable via Kafka and custom partitioning logic, ensuring chat messages are delivered with minimal latency. The backend server is written entirely using C++, leveraging raw TCP sockets and event-driven architecture to handle efficient message routing. The web server is multi-threaded to handle concurrent client connections, and handles WebSocket connections, HTTP requests, and user authentication. It is built with C++, vanilla JavaScript, and CSS.

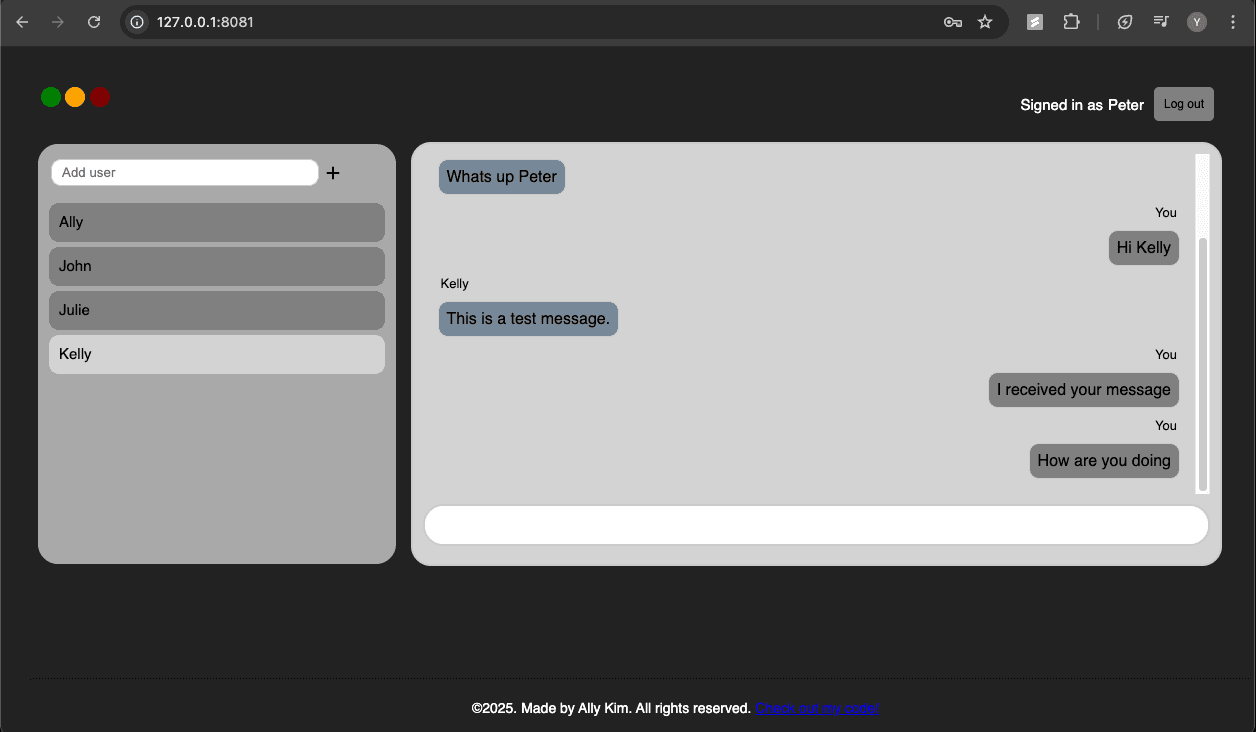

Screenshots

Chat Application Screenshot

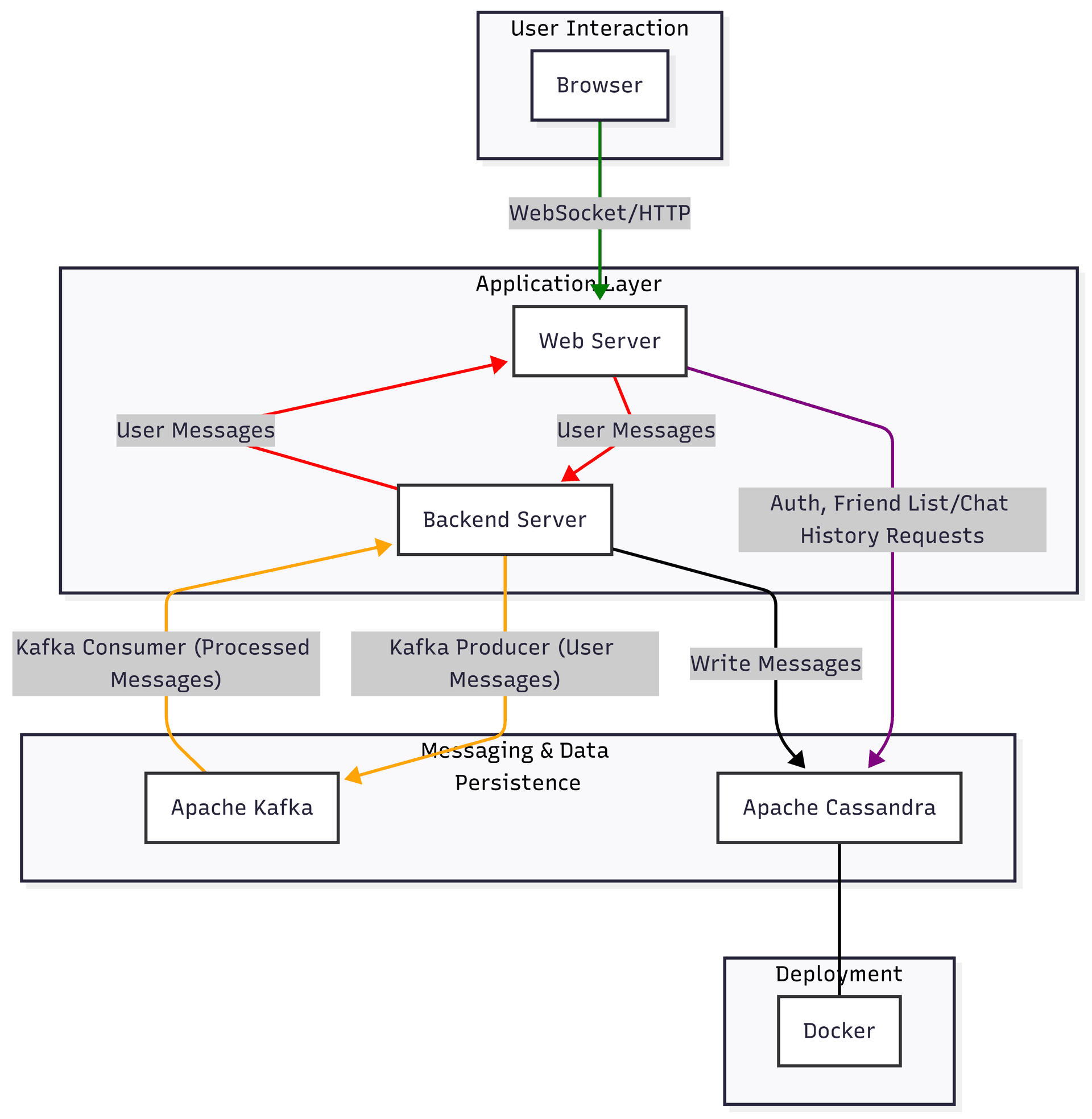

System Architecture

System Architecture
Key Points:
  • Backend server creates Kafka producer and consumer clients to send and receive messages. Based on connected user IDs, backend serve dynamically subscribes/unsubscribes to the appropriate Kafka topic partition.
  • Backend uses event-driven architecture with select() to handle concurrent frontend connections and incoming messages. Separate thread is used to handle Kafka message delivery and data writes to Cassandra.
  • Frontend uses multi-threading to handle multiple client connections. TCP pool is used to handle backend connections.

How to Run

  1. Install dependencies: Apache Kafka, Apache Cassandra, C++ build tools
  2. Set up Kafka cluster: set Kafka topic, number of partitions, replication factor, and port
    bin/kafka-topics.sh --create \ --topic chat_messages \ --partitions 3 \ --replication-factor 3 \ --bootstrap-server localhost:9092
  3. For each Kafka broker, format storage directory
    bin/kafka-storage.sh format -t $(bin/kafka-storage.sh random-uuid) -c config/server-1.properties
  4. Start each Kafka broker instance
    bin/kafka-server-start.sh config/server-1.properties
  5. Install Docker, pull Cassandra Docker image, and run Cassandra using a specific port
    docker run --name my-cassandra -p 9042:9042 -d cassandra:latest
  6. Set up CassandraDB keyspace and tables using built-int cqlsh client
  7. Compile the frontend and backend C++ servers using Makefiles
    Ex. make all
  8. Run backend server, providing IP, port, and server ID
    ./backendserver -v [IP:port] [serverID]
  9. Run frontend server, providing backend IP and port, frontend server IP and port, and server ID
    ./frontend_server_real [backend IP:port] [frontend IP:accept client port:connect to backend port] [frontend-server-ID]
